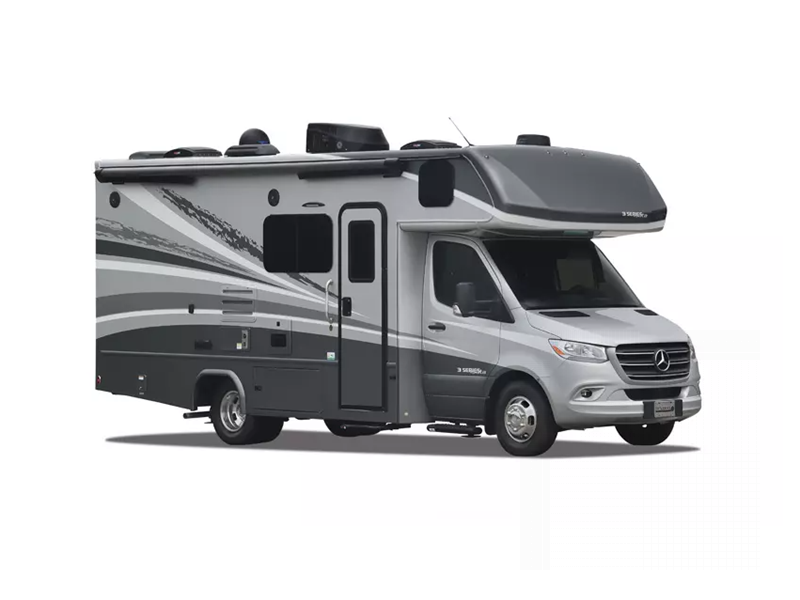

Dynamax isata 3 Motor Home Class C - Diesel RVs For Sale
The Dynamax isata 3 Class C diesel motorhomes are different by design! A fuel efficient 2.0L l-4 turbo diesel engine and Mercedes-Benz Sprinter chassis propels these units to every destination you wish to visit.
Each model has an extensive list of upgraded, standard features with contemporary interiors and functional living spaces. You will be able to enjoy life on the road for years to come thanks to the durable composite exterior fiberglass with no exterior wood, plus a crowned, one-piece fiberglass roof and aluminum-framed floor. The automatic, 4-point hydraulic leveling jacks come with Bluetooth smart phone app control to make setting up even easier, and there is a quad-view camera system to maneuver in and out of the campground like a pro!
Start traveling in true luxury with the Dynamax isata 3 Class C diesel motorhomes!
-
isata 3 24FW
Dynamax isata 3 Class C diesel motorhome 24FW highlights: Queen Bed Booth ... more about isata 3 24FW
Specifications

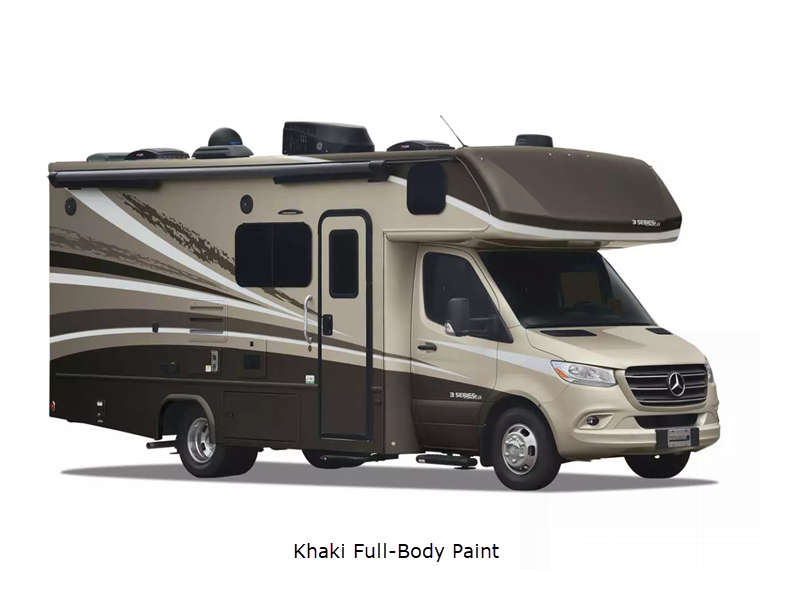

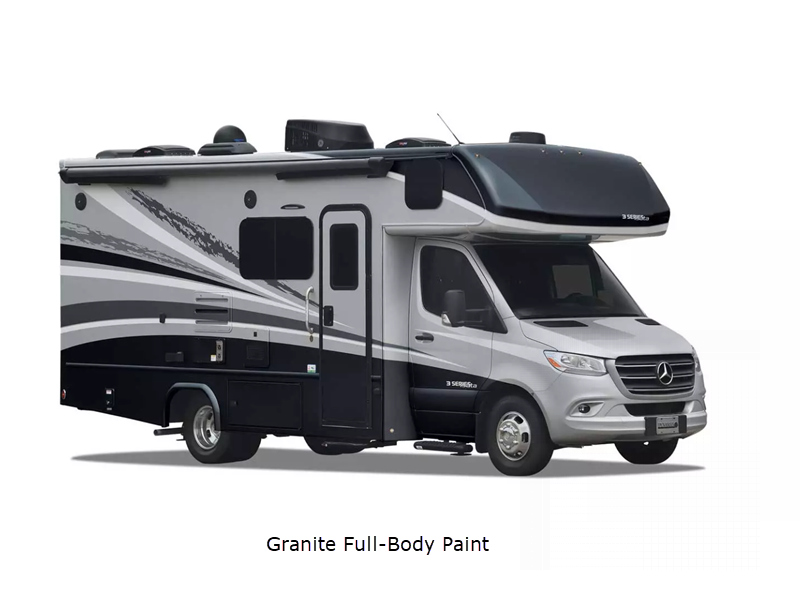

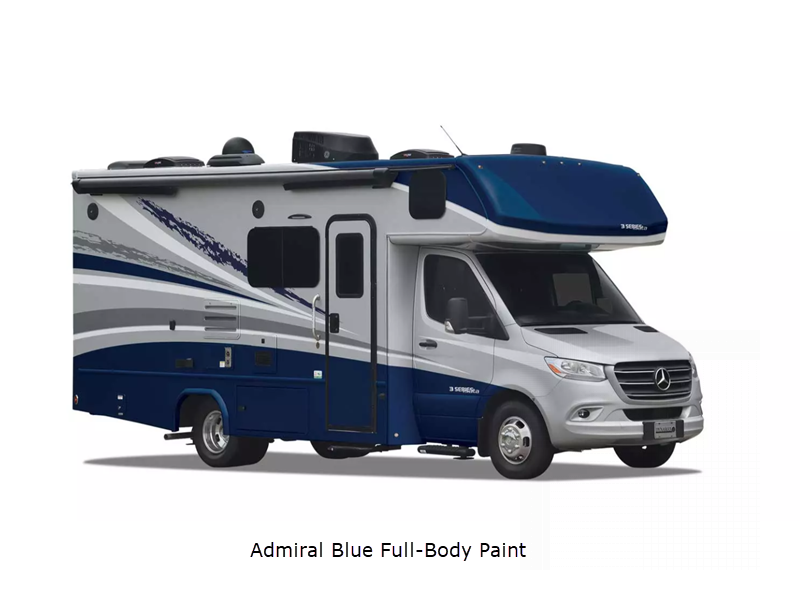

Sleeps 3 Slides 1 Length 24 ft 7 in Ext Width 7 ft 10 in Ext Height 11 ft 5 in Int Height 6 ft 9 in Interior Color Desert, Milano Exterior Color Full Body Paint; Admiral Blue, Granite, Khaki, Magnetic, Merlot Hitch Weight 5000 lbs GVWR 11030 lbs Fresh Water Capacity 35 gals Grey Water Capacity 32 gals Black Water Capacity 32 gals Tire Size 16" Furnace BTU 20000 btu Generator 3.6KW Onan LP Fuel Type Diesel Engine 2.0L I-4 Chassis Mercedes Benz Sprinter Horsepower 211 hp Fuel Capacity 26 gals Wheelbase 170 in Available Beds Queen Torque 332 ft-lb Refrigerator Type 12V Two Door Compressor Driven Refrigerator Size 8 cu ft Convection Cooking Yes Cooktop Burners 3 Number of Awnings 1 Axle Weight Front 4410 lbs Axle Weight Rear 7720 lbs LP Tank Capacity 20.3 gals Water Heater Type Truma Aqua Go Comfort On Demand AC BTU 15000 btu TV Info LR 32" LED Smart TV, BR 32" LED Smart TV Awning Info 16' Armless w/LED Lighting and Motion Activated Retraction Gross Combined Weight 15250 lbs Shower Type Standard Electrical Service 30 amp Similar Floorplans
-
isata 3 24RW
Dynamax isata 3 Class C diesel motorhome 24RW highlights: Rear Private Bedroom ... more about isata 3 24RW
Specifications
Sleeps 3 Slides 2 Length 24 ft 7 in Ext Width 7 ft 10 in Ext Height 11 ft 5 in Int Height 6 ft 9 in Interior Color Desert, Milano Exterior Color Full Body Paint; Admiral Blue, Granite, Khaki, Magnetic, Merlot Hitch Weight 5000 lbs GVWR 11030 lbs Fresh Water Capacity 35 gals Grey Water Capacity 32 gals Black Water Capacity 32 gals Tire Size 16" Furnace BTU 20000 btu Generator 3.6KW Onan LP Fuel Type Diesel Engine 2.0L I-4 Chassis Mercedes Benz Sprinter Horsepower 211 hp Fuel Capacity 26 gals Wheelbase 170 in Available Beds Queen Torque 332 ft-lb Refrigerator Type 12V Two Door Compressor Driven Refrigerator Size 8 cu ft Convection Cooking Yes Cooktop Burners 3 Number of Awnings 1 Axle Weight Front 4410 lbs Axle Weight Rear 7720 lbs LP Tank Capacity 20.3 gals Water Heater Type Truma Aqua Go Comfort On Demand AC BTU 15000 btu TV Info LR 32" LED Smart TV, BR 32" LED Smart TV Awning Info 16' Armless w/LED Lighting and Motion Activated Retraction Gross Combined Weight 15250 lbs Shower Type Standard Electrical Service 30 amp Similar Floorplans
-
isata 3 24FWSFX
Dynamax isata 3 Freedom Edition Class C diesel motorhome 24FWSFX highlights: ... more about isata 3 24FWSFX
Have a question about this floorplan? Contact Us
Specifications
Sleeps 3 Slides 1 Length 24 ft 7 in Ext Width 7 ft 10 in Ext Height 11 ft 5 in Int Height 6 ft 9 in Interior Color Desert, Milano Exterior Color Freedom Edition Light, Freedom Edition Dark Hitch Weight 5000 lbs GVWR 11030 lbs Fresh Water Capacity 50 gals Grey Water Capacity 32 gals Black Water Capacity 32 gals Tire Size 16" Furnace BTU 20000 btu Fuel Type Diesel Engine 2.0L I-4 Chassis Mercedes Benz Sprinter Horsepower 211 hp Fuel Capacity 26 gals Wheelbase 170 in Available Beds Queen Torque 332 ft-lb Refrigerator Type 12V Two Door Compressor Driven Refrigerator Size 8 cu ft Convection Cooking Yes Cooktop Burners 2 Number of Awnings 1 Axle Weight Front 4410 lbs Axle Weight Rear 7720 lbs Water Heater Type Truma Combi D 6 E High Efficiency AC BTU 15000 btu TV Info LR 32" LED TV, BR 32" LED Smart TV Awning Info 16' Armless w/LED Lighting and Motion Activated Retraction Gross Combined Weight 15250 lbs Shower Type Standard Electrical Service 30 amp Similar Floorplans
-
isata 3 24SSSFXM
Dynamax isata 3 Class C diesel motorhome Freedom Edition 24SSSFXM highlights: ... more about isata 3 24SSSFXM
Have a question about this floorplan? Contact Us
Specifications
Sleeps 3 Slides 1 Length 25 ft 5 in Ext Width 7 ft 10 in Ext Height 11 ft 5 in Interior Color Desert, Milano Exterior Color Freedom Edition Light, Freedom Edition Dark Hitch Weight 5000 lbs GVWR 11030 lbs Fresh Water Capacity 35 gals Grey Water Capacity 32 gals Black Water Capacity 32 gals Tire Size LT215/85 R16 Furnace BTU 20000 btu Fuel Type Diesel Engine 2.0L I-4 Chassis Mercedes-Benz Sprinter Horsepower 211 hp Fuel Capacity 24 gals Wheelbase 170 in Available Beds Murphy Torque 332 ft-lb Refrigerator Type 12V Two Door Compressor Driven Refrigerator Size 8 cu ft Convection Cooking Yes Cooktop Burners 2 Number of Awnings 1 Axle Weight Front 4410 lbs Axle Weight Rear 7720 lbs Water Heater Type Truma Combi D 6 E High Efficiency AC BTU 15000 btu Awning Info 16' Armless w/LED Lighting and Motion Activated Retraction Gross Combined Weight 15250 lbs Shower Type Standard Electrical Service 30 amp Similar Floorplans
Take a Virtual Tour
isata 3 Features:
Standard Features (2025)
Chassis
- Mercedes-Benz® Sprinter Chassis (11,030-lbs. GVWR / 15,250-lbs. GCWR)
- 2.0L I4 Turbo Diesel Engine (211 hp / 332 lb-ft. of Torque)
- 9G-TRONIC PLUS Automatic Transmission with Overdrive
- 26.4-Gallon Fuel Tank
- 5.75-Gallon Diesel Exhaust Fluid Tank
- Lane Keep Assist
- Adaptive Cruise Control
- Active Brake Assist
- High-Beam Assist
- Crosswind Assist
- Attention Assist
- Traffic Sign Assist
- Rescue Assist
- Electronic Stability Program (ESP)
- Wet Wiper System
- Trailer Hitch (5,000 Tow lbs. / 500 Tongue lbs.) with 7-Way Round Tow Connection
- Momentary Battery Booster Switch for Connecting Chassis and House Batteries
- Single 12V Chassis Battery
- 250-Amp Alternator
- LED Brake, Turn, and Backup Lights
- Fog Lights
- Aluminum Running Boards
- Bilstein® Gas-Charged Rear Shock Absorbers
- Aluminum Wheels (Set of Four) with Metal Valve Extensions
- Front and Rear Tires: LT215/85 R16
- Single Front Wheels and Dual Rear Wheels (5.5" x 16")
- Aluminum Wheels (Set of Four) with Valve Extensions
- 4.727 Rear Axle Ratio

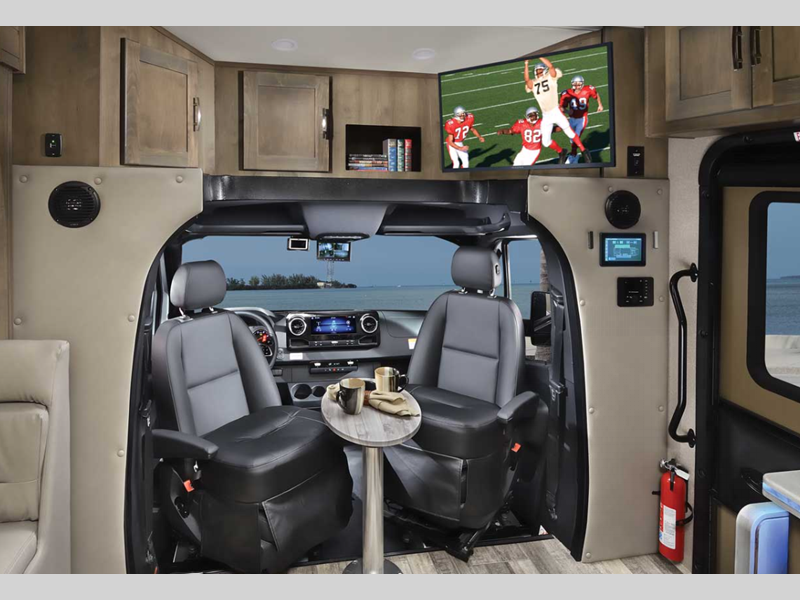

- Power, Heated Leatherette Cab Seats with Swivel Bases
- Quad-View Camera System (Right Side, Left Side, Hitch, and Rear Horizon Views)

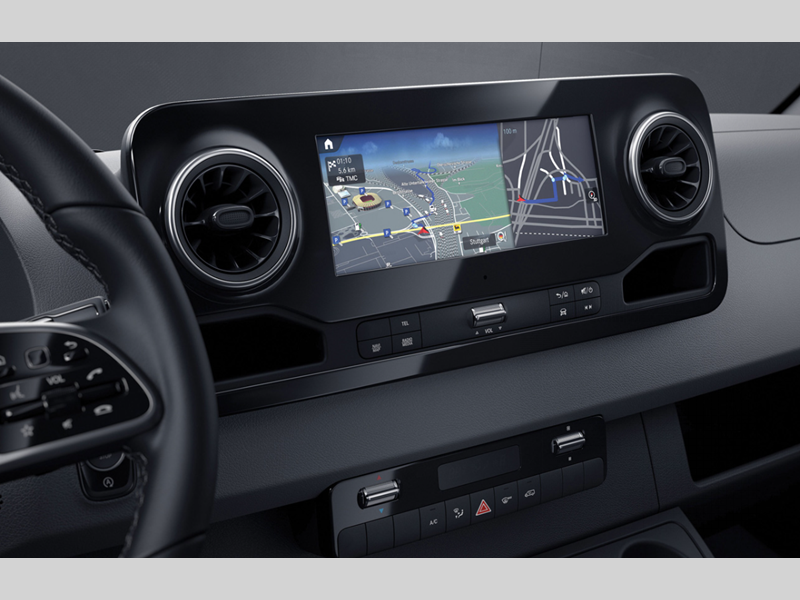

- MBUX (Mercedes-Benz User Experience) 10.25" Touch Screen Infotainment System with Navigation, AM/FM, Bluetooth®, Sirius/XM® (tuner and antenna), Apple® CarPlay™ / Android® Auto™ Functionality, and "Hey Mercedes" Voice Control
- 12V and USB-C Accessory Ports
- Wireless Smartphone Charging Tray
- Instrument Cluster with Color Display
- Multifunction Steering Wheel
- Adjustable Steering Column
- Power Windows and Locks
- Power Exterior Mirrors (Auto-Heated at Low Temperatures)
- 3-Point Seat Belts
- Front, Thorax, & Window Safety Air Bags
- Deluxe, Removable Automotive Cab Carpet Mat
- Drink Holders
Construction
- 1 ½” Aluminum-Framed, Laminated Sidewalls with Block Foam Insulation
- Composite Exterior Fiberglass (No Exterior Wood)
- Aluminum-Framed Floor
- Composite Flooring Substrate (Lightweight & Moisture-Resistant)
- Aluminum-Framed Roof Trusses
- Crowned, One-Piece Fiberglass Roof
- Fiberglass Rear Bumper
- Foil-Lined Ductwork Throughout
- Aerodynamic Fiberglass Front Wing Panels
- Automatic, 4-Point Hydraulic Leveling Jacks with Bluetooth® Smart Phone App Control
- Dark-Tinted, Frameless Windows
- Seamless Rotocast Storage Compartments with LED Lighting
- Locking Aluminum Exterior Storage Doors with Compression Latches
- Electric Slide System
Exterior

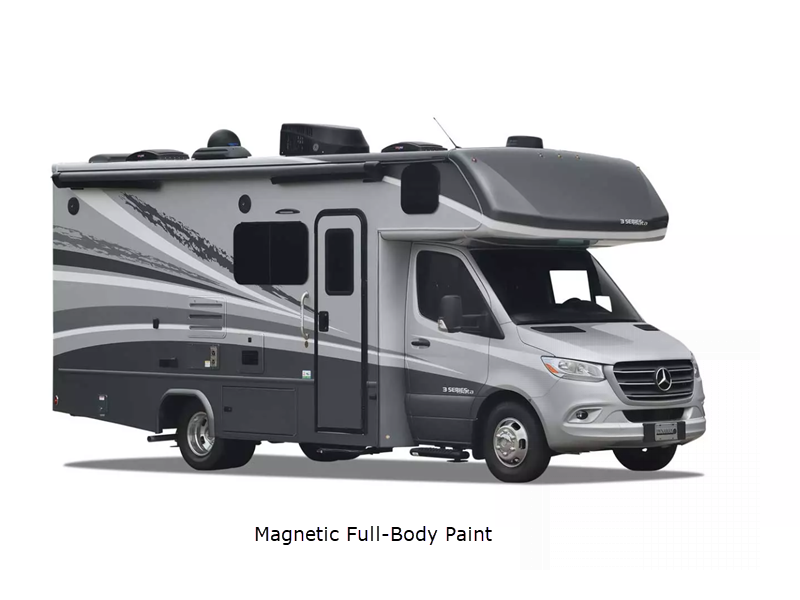

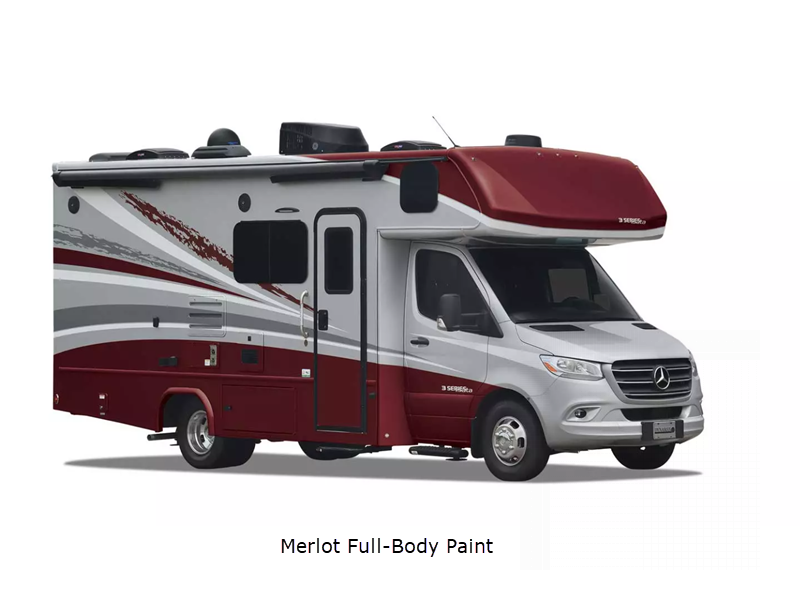

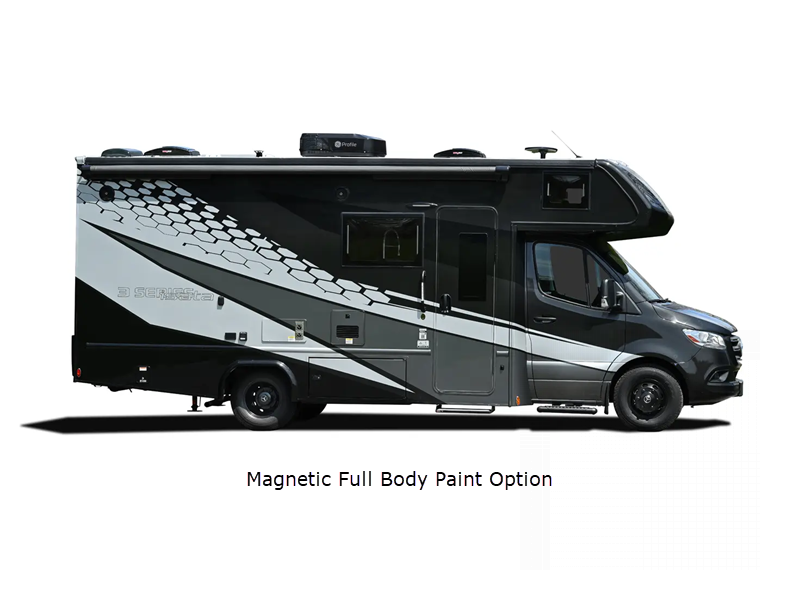

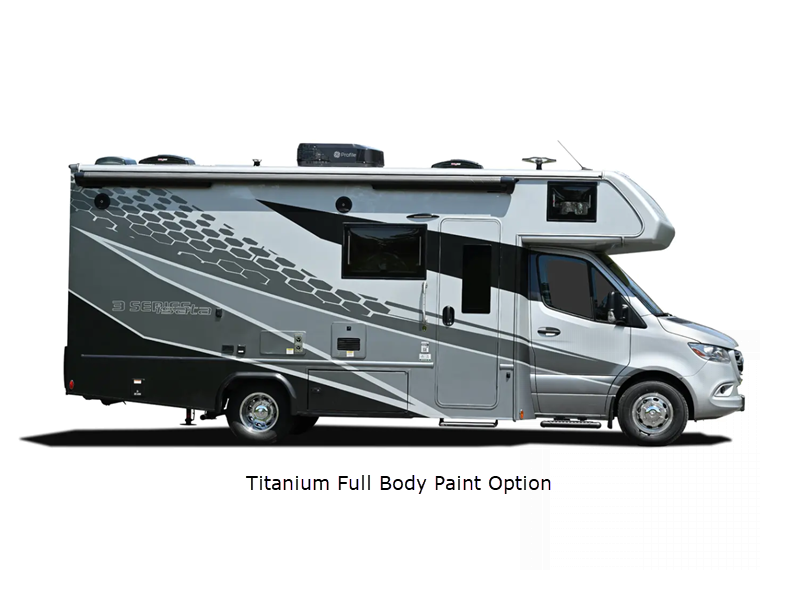

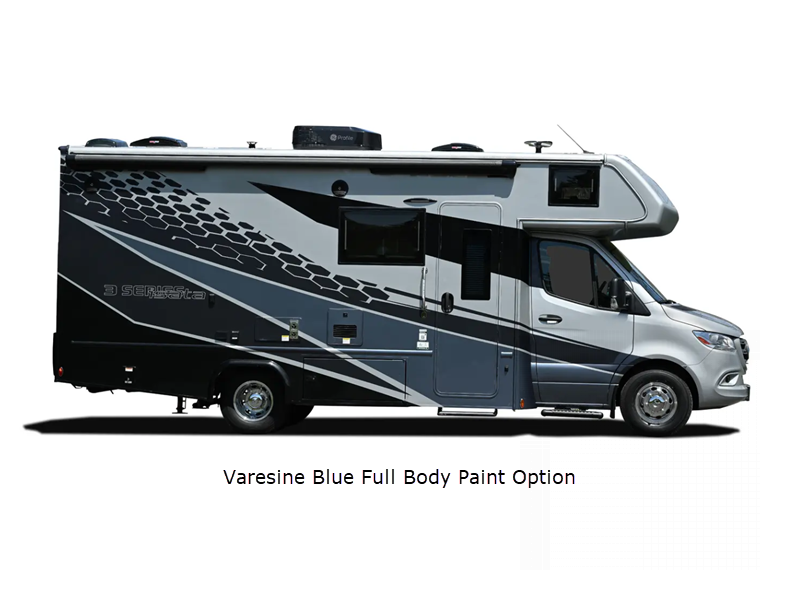

- Custom Full Body Paint Package
- Premium Cut and Buffed Paint Finish
- Front-End Diamond Shield® Paint Protection
- Armless Patio Awning with LED Lighting and Motion-Activated Retraction
- Slideout Topper(s)
- LED Patio Light
- Entry Door with Dark-Tinted, Frameless Window and Integrated Shade
- Lighted Acrylic Entry Grab Handle
- Power Entry Step with Upgraded SeaDek® Step Tread
- Exterior TV Mount
- Exterior Speakers
- Front and Rear LED Clearance and Marker Lighting

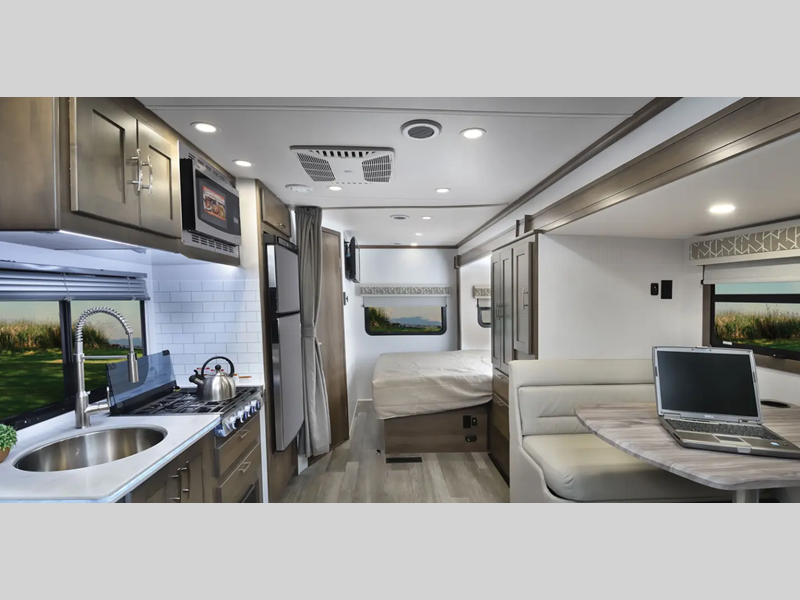

Interior
- Premium Vinyl Flooring Throughout
- Soft-Touch Padded Vinyl Ceiling
- LED Ceiling Lighting

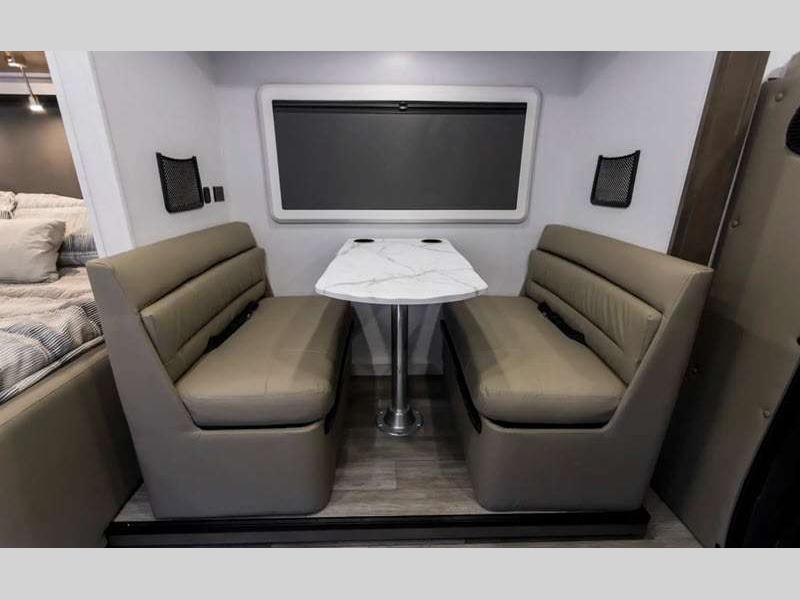

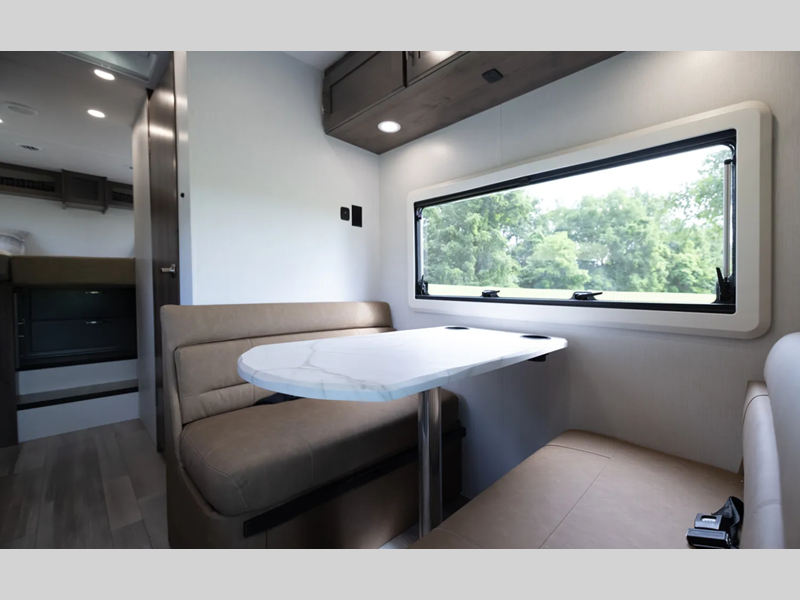

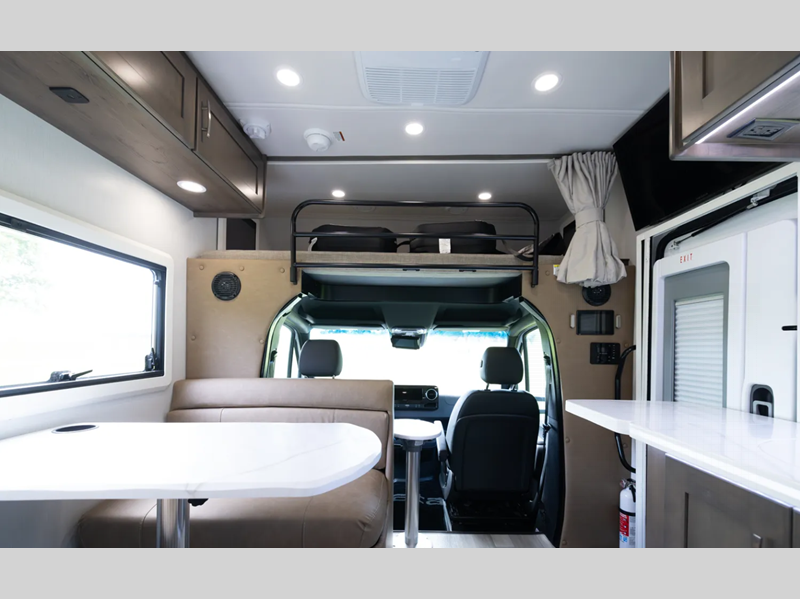

- Sprung, Residential-Style Dinette Seats with Lift Up Storage
- Coordinating Window Treatments
- Blackout Roller Shades (Steel Blind at Kitchen Window)
- Hardwood Craftsman-Style Cabinetry

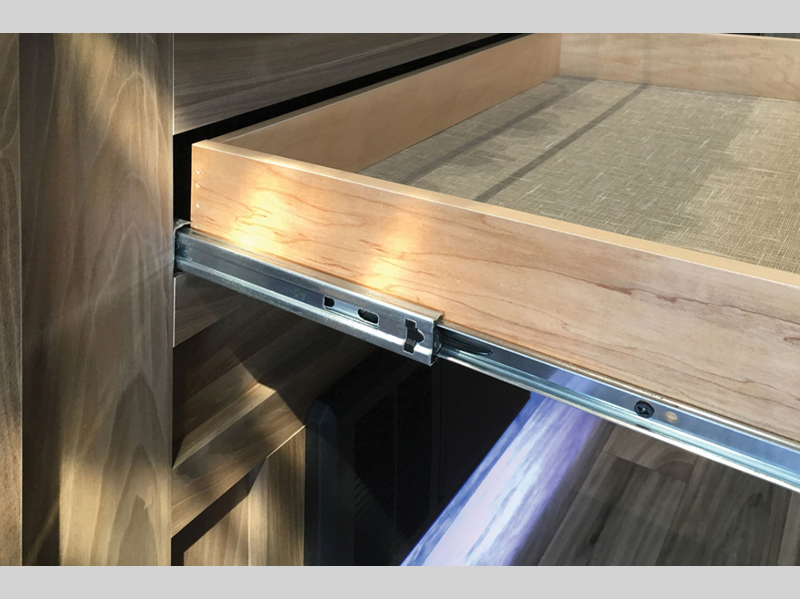

- Full Extension, Soft-Closing Drawer Guides (where applicable)
- Hidden Hinges

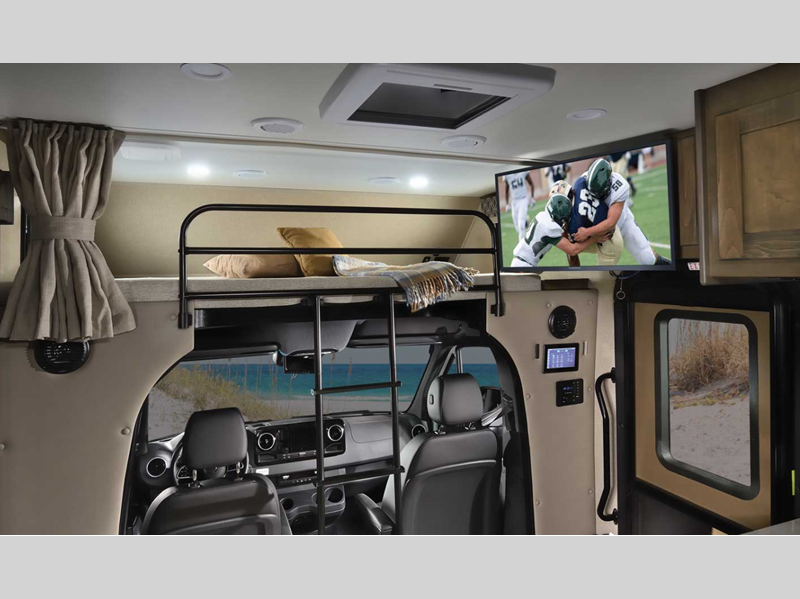

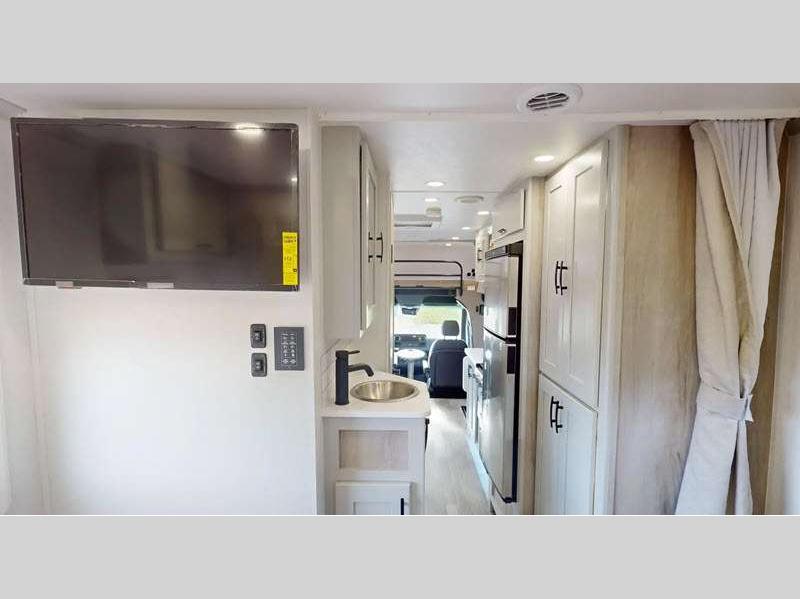

- 32" LED Smart TV (Living Area)
- Stereo System - AM/FM with Zoned Speaker Control and Bluetooth® Smart Phone App Control
- Easy Access Battery Compartment Beneath Entry Step
- Entry with Non-Skid Rubber Step and Steel Risers
- Thermal, Reflective Front Privacy Shades
- USB Charging Ports
- Cocktail Table Between Cab Seats
- Cab Seat Booster Cushions (Set of Two)

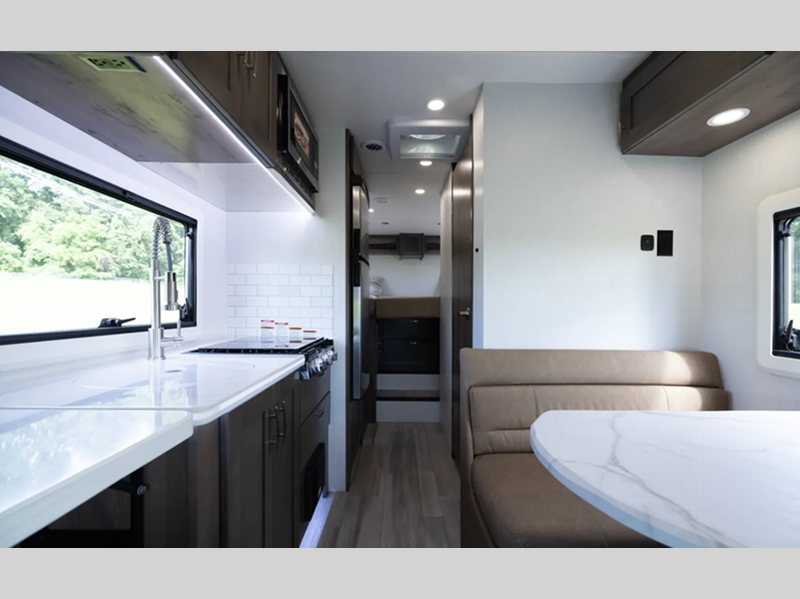

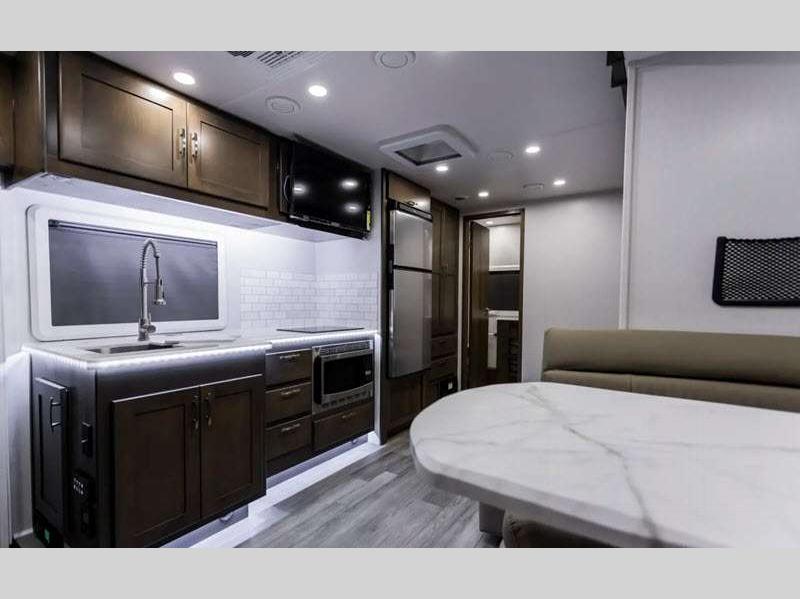

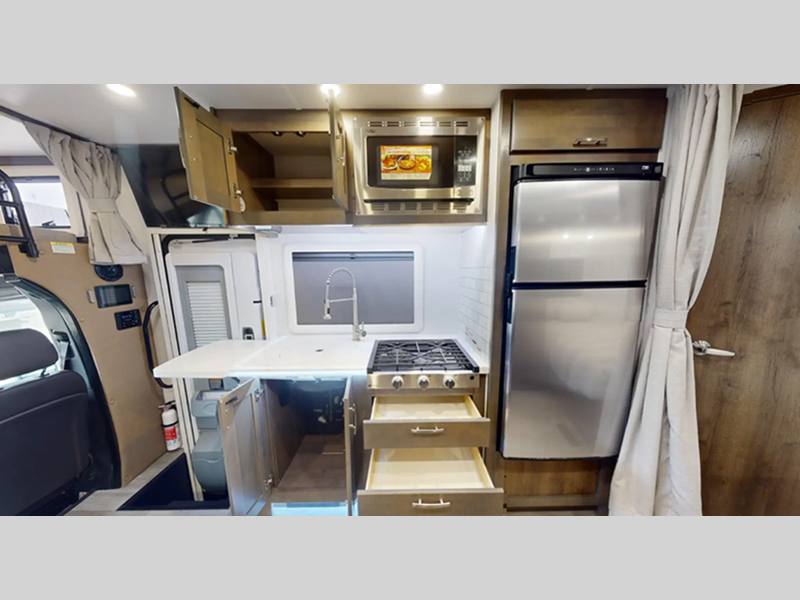

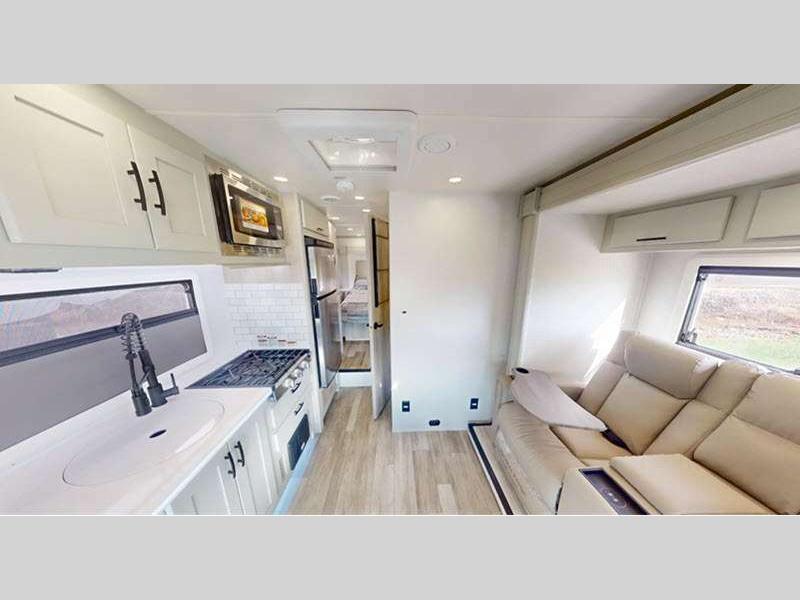

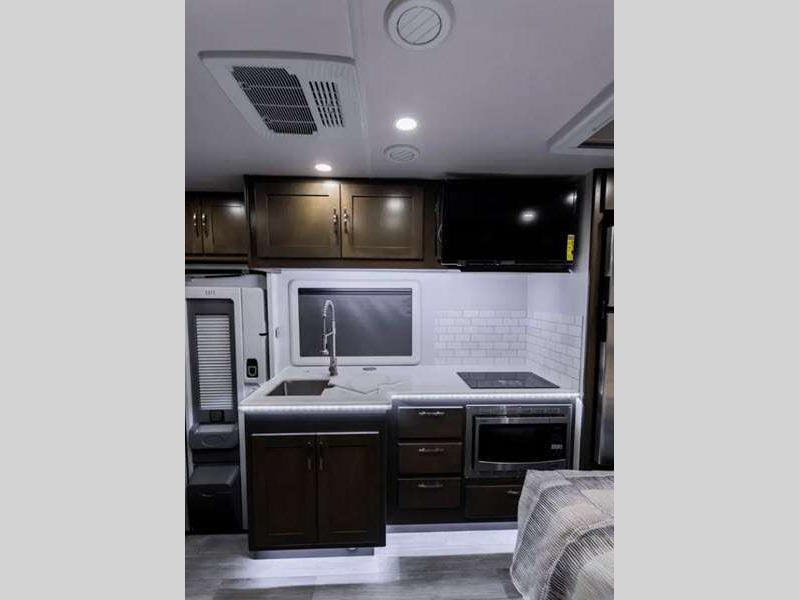

Kitchen
- 12V 8 cu. ft. 2-Door Compressor-Driven Refrigerator
- Gas Range with Glass Cover and Overhead Range Cover
- Convection Microwave Oven
- Solid Surface Countertops with LED Edge Lighting and Backsplash
- Solid Surface Countertop Extension

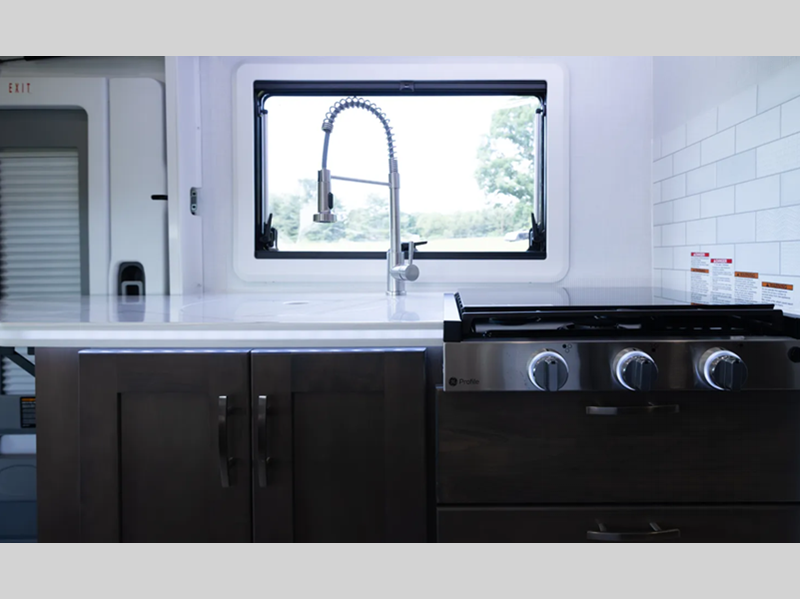

- Stainless Steel Sink with Solid Surface Cover
- Residential Stainless Steel Spring Gooseneck Faucet
- Overhead Cabinet Accent Lighting
- Under-Cabinet Lighting
- MaxxAir® Power Vent with Built-In Rain Cover

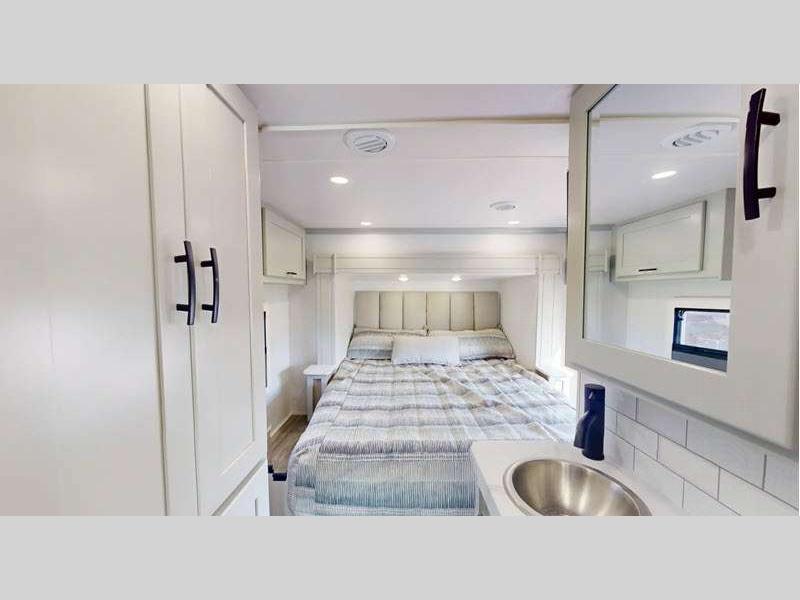

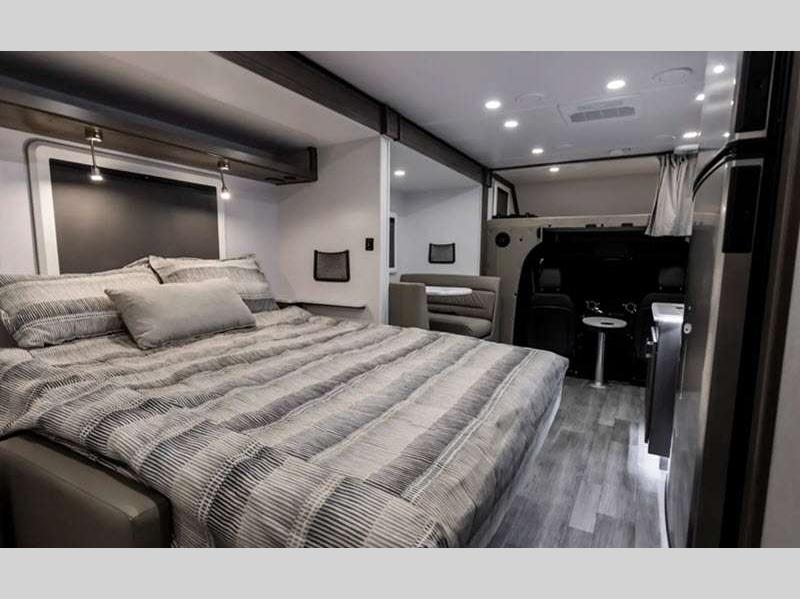

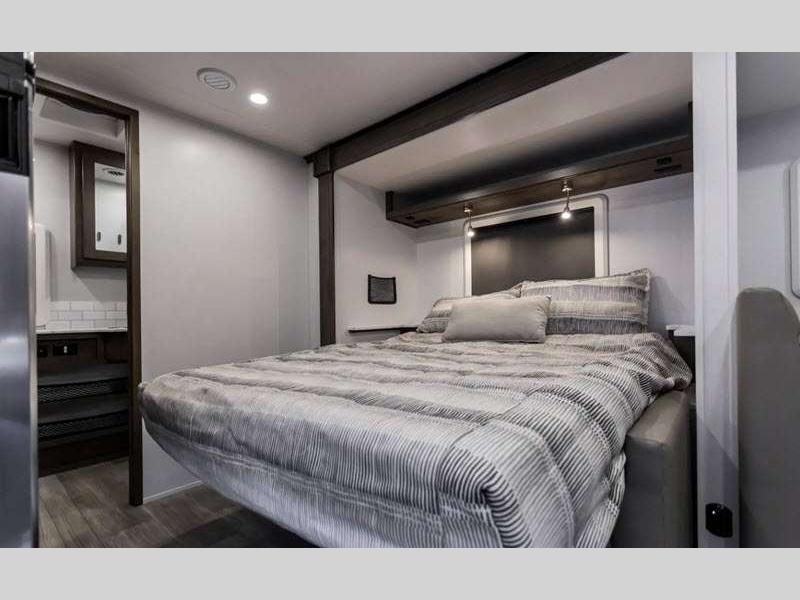

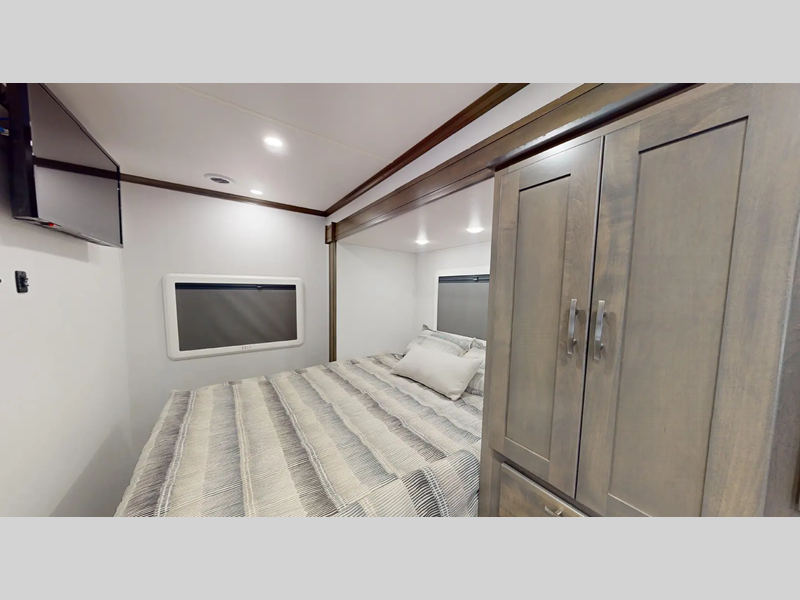

Bedroom

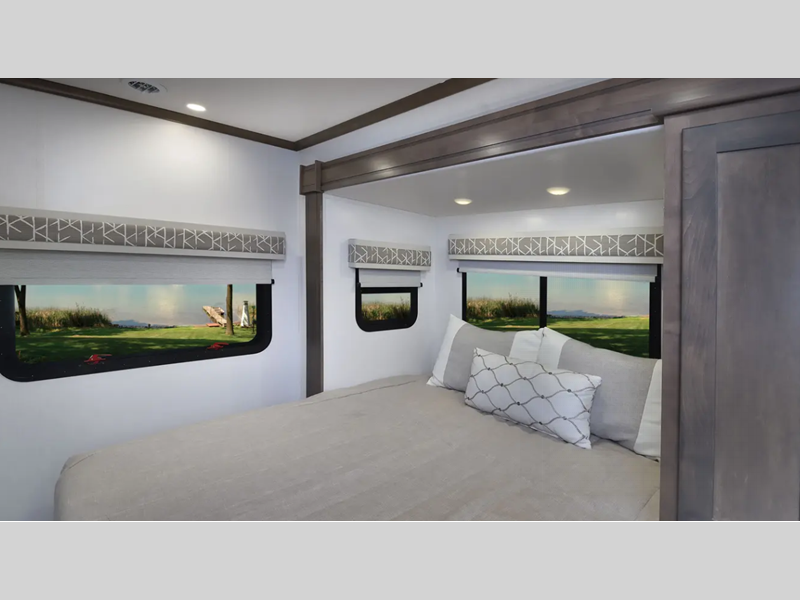

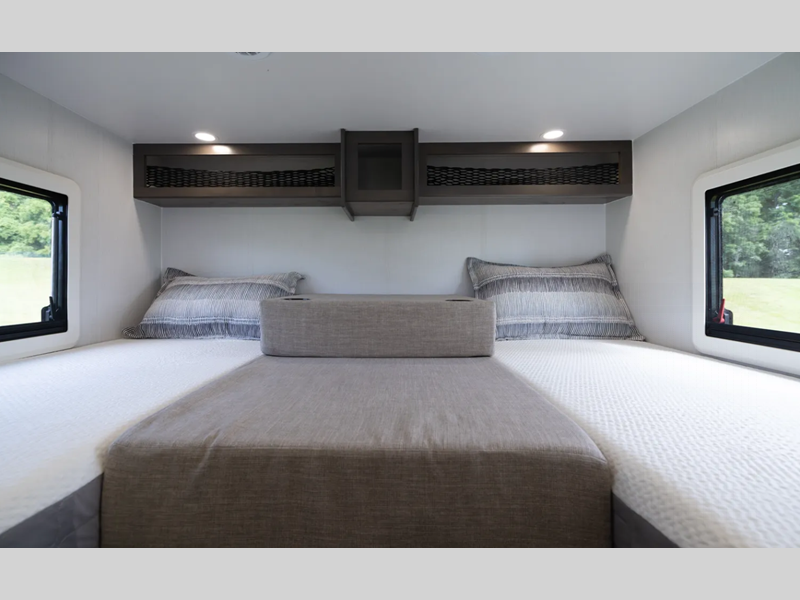

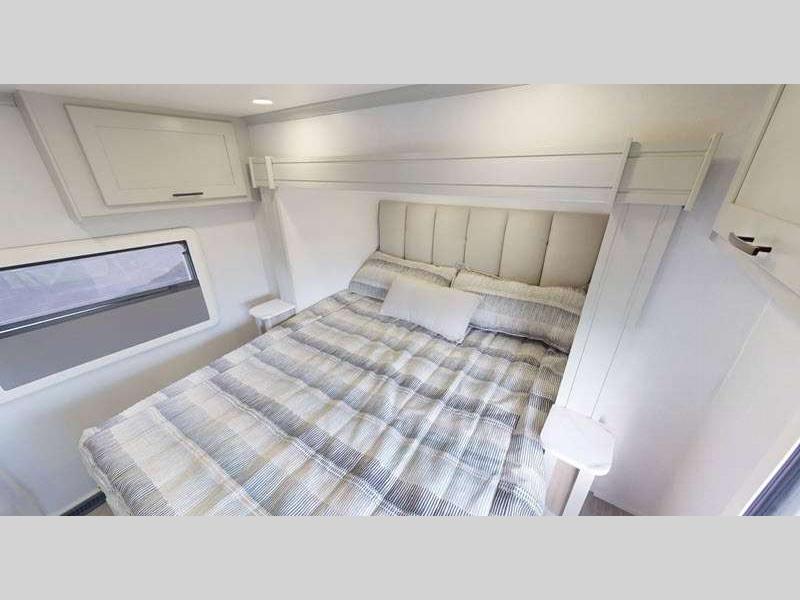

- Queen Bed (60"x75") with Gel-Infused Memory Foam Mattress
- Under-Bed Storage (24FW)
- Deluxe Padded Headboard (24RW)
- Designer Bedding Package
- 32" LED Smart TV (N/A 24SSSFX)
- Cedar-Lined Wardrobe
- LED Reading Lights
- USB Charging Ports
- Privacy Partition

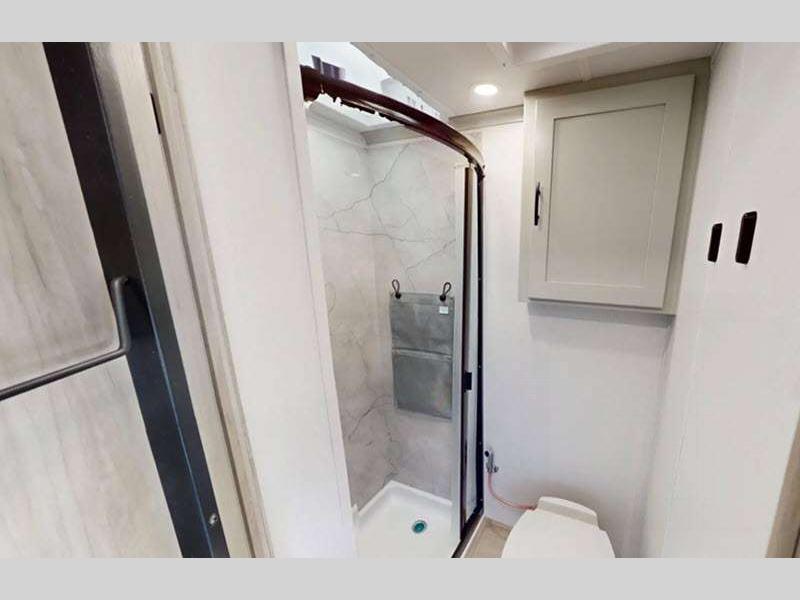

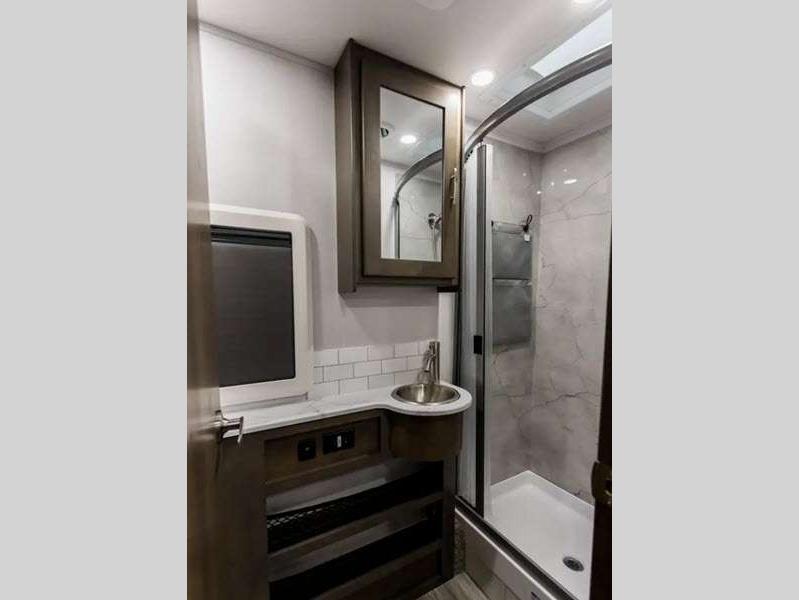

Bathroom

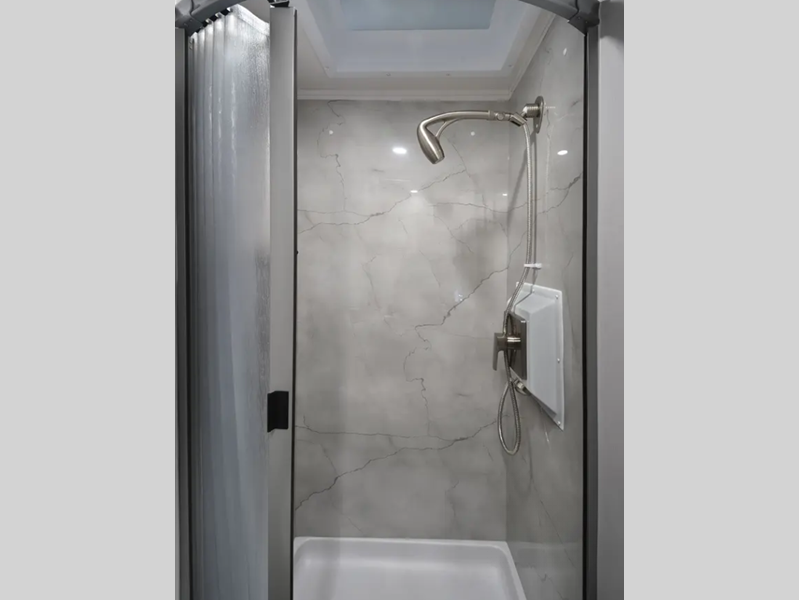

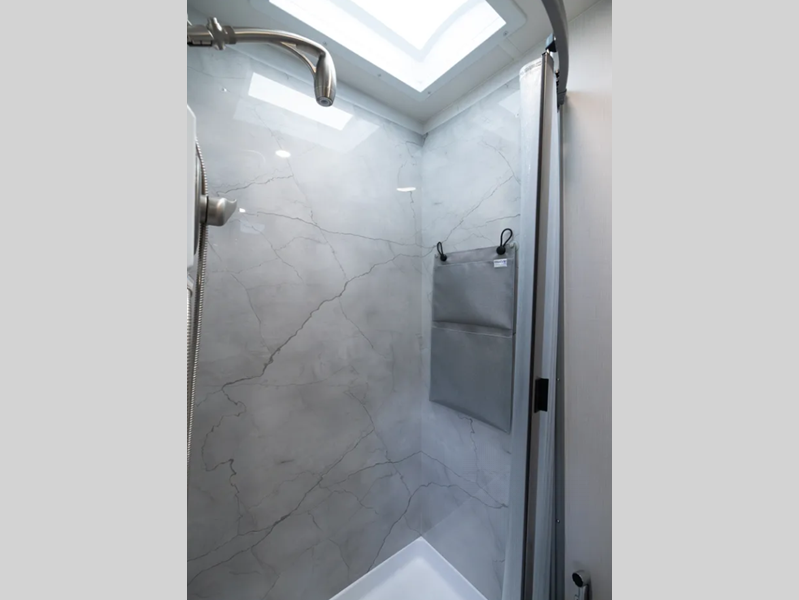

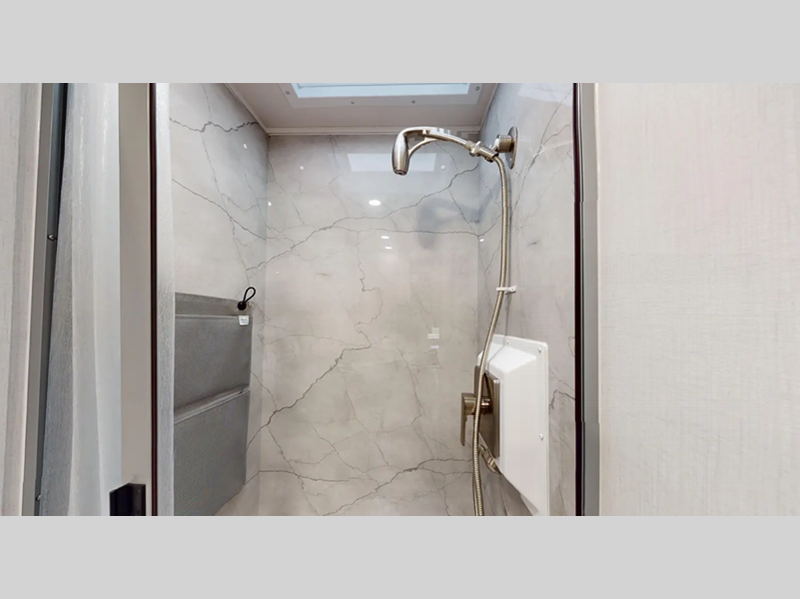

- Shower with Light-Weight, Soft-Sided Shower Door and Skylight
- Oxygenics Body Spa® RV Shower Head

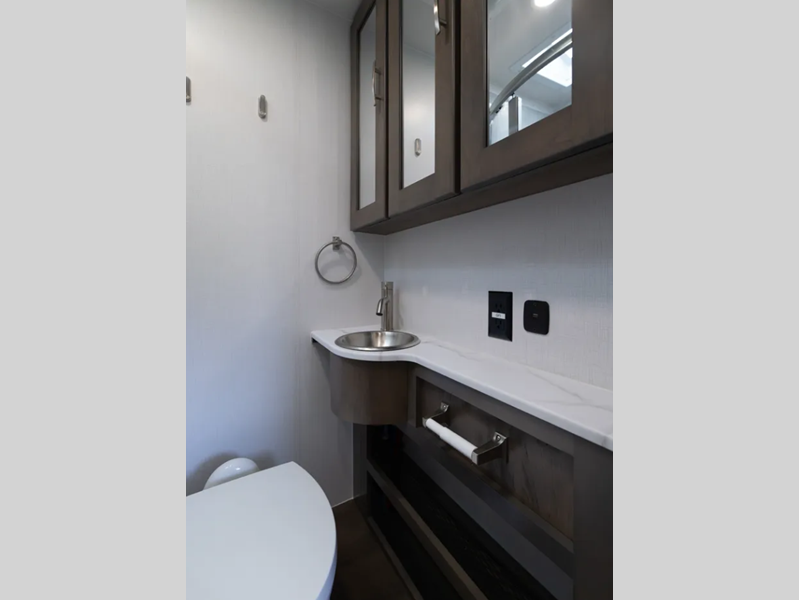

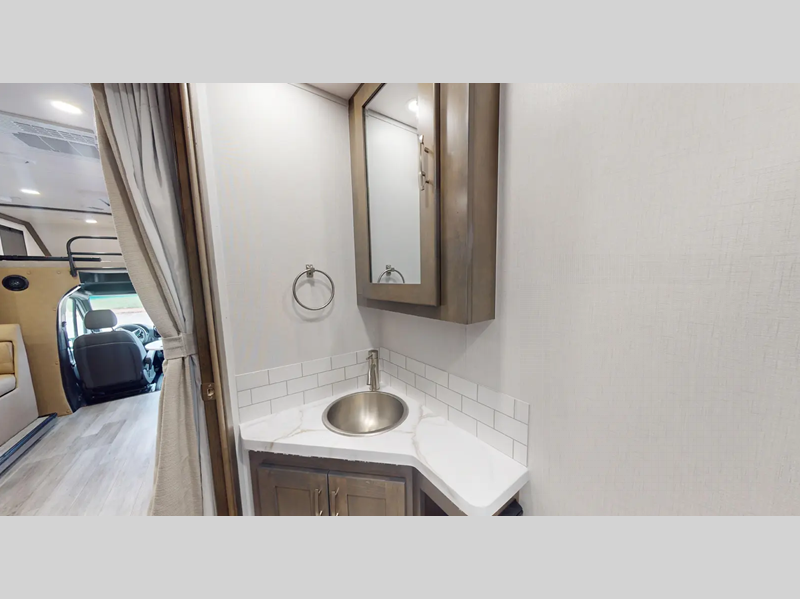

- Stainless Steel Sink with Residential Faucet
- Composite Foot-Flush Toilet with Hand Sprayer
- MaxxAir® Power Vent with Built-In Rain Cover
Utilities
- Dual Low-Temp Lithium Auxiliary Batteries (200aH Total)

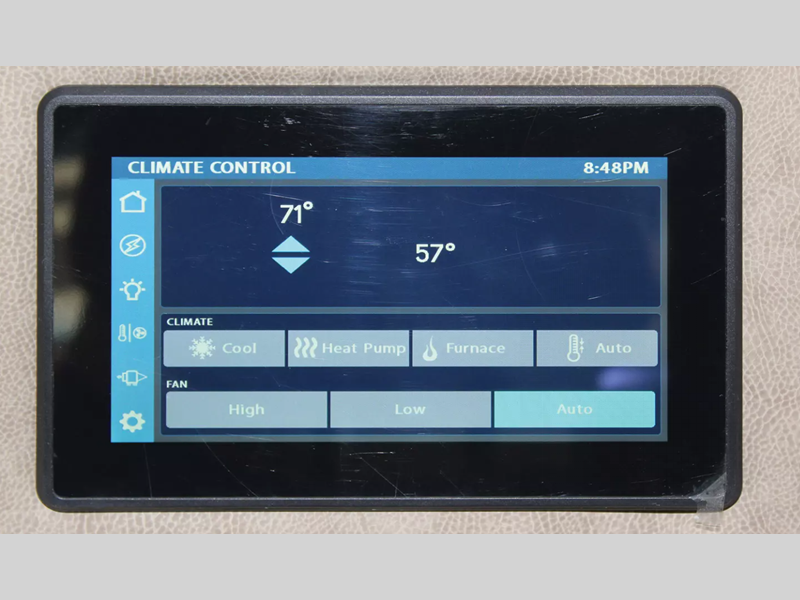

- Firefly® Multiplex Wiring with Touch Screen Command Center, Switch Panels, and Bluetooth® Smart Phone App Control
- Battery Disconnect at Entry
- 30-Amp Service
- 2,000W Pure Sine Wave Inverter (3,300 Peak Watts)
- 3.6kW Onan® LP Generator with Auto Transfer Switch (Mounted on Isolator Pads)
- Automatic Generator Start

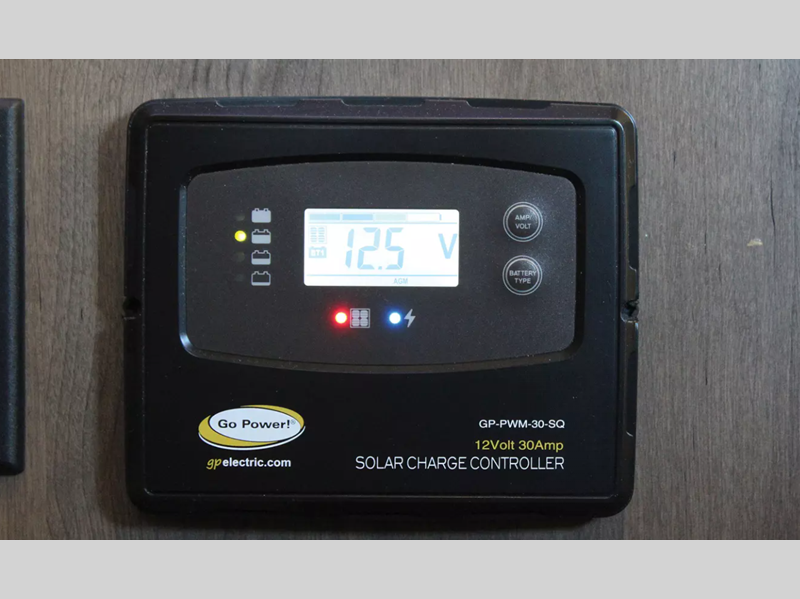

- Solar Panel - Single 190 Watt with 30 Amp Controller
- Ducted, Low-Profile 15,000-BTU Air Conditioner with Heat Pump
- 20,000-BTU Furnace with Electronic Ignition
- 60,000-BTU Truma® Aqua Go Comfort™ On-Demand Water Heater (LP)
- 20.3-Gallon LP Tank (WC)
- LP Quick Connect
- Water Filtration System
- Exterior Shower in Service Bay
- Exterior GFCI Receptacle
- Winegard® AIR 360+™ with Gateway Router (WiFi Extender, 4G LTE, Omnidirectional VHF/UHF OTA, FM, SIM Card Port)
- 4x4 HDMI Matrix
- Cable TV/Satellite Hookup
- 60-Amp Progressive Dynamics Converter with Charge Wizard® System
- Black Tank Flush
- SureLevel® Tank Level Monitoring System
- 12V Heat Pads on Fresh, Gray, and Black Tanks
- Water Management Valve for Fill and Winterizing
- Upgraded 12V On-Demand Water Pump (4 gallons per minute)
- Carbon-Monoxide, LP, and Smoke Detectors
- Fire Extinguisher
Options

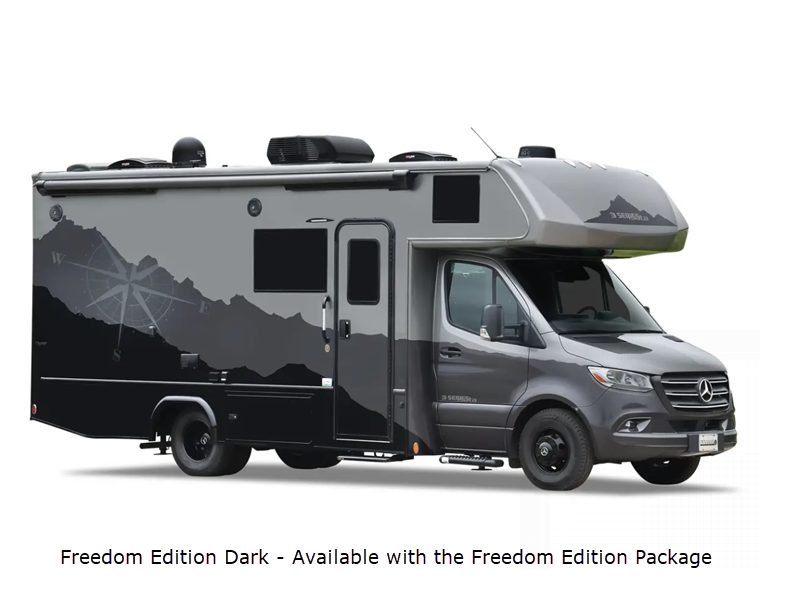

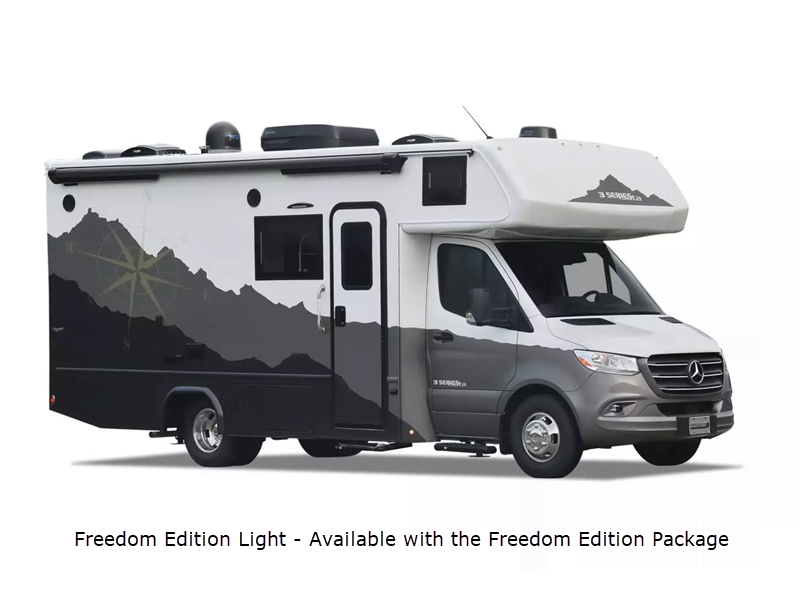

- Exclusive Freedom Edition Full-Body Paint Scheme (Freedom Light or Freedom Dark)
- Dual-Pane Acrylic Windows with Built-In Day/Night Shades (Delete Standard Valances & Slide-Out End Wall Windows)
- Insulated Cab Curtain
- Additional 280-Amp Alternator
- Delete 3.6kW Onan® LP Generator - Replaced by Additional Alternator
- Delete 20.3-Gallon LP Tank
- Two Low-Temp Lithium House Batteries (620AH Total)
- Three 190W (570W Total) Solar Panels with 30-Amp Controller
- 3,000W Pure Sine Wave Inverter/Charger
- 20,400-BTU Truma® Combi D 6 E - High-Efficiency Furnace & Water Heater (Diesel)
- 2-Burner Induction Range
- 50-Gallon Fresh Water Tank Relocated in Bed Base (24FWSFXM Only)
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
