Floorplan - 2017 Jayco Precept 36T
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-

- Our Price: $89,995
- List Price: $94,750
- Discount: $4,755
-
Sleeps 9
-
4 Slides
-
Bunk Over CabBunkhouse

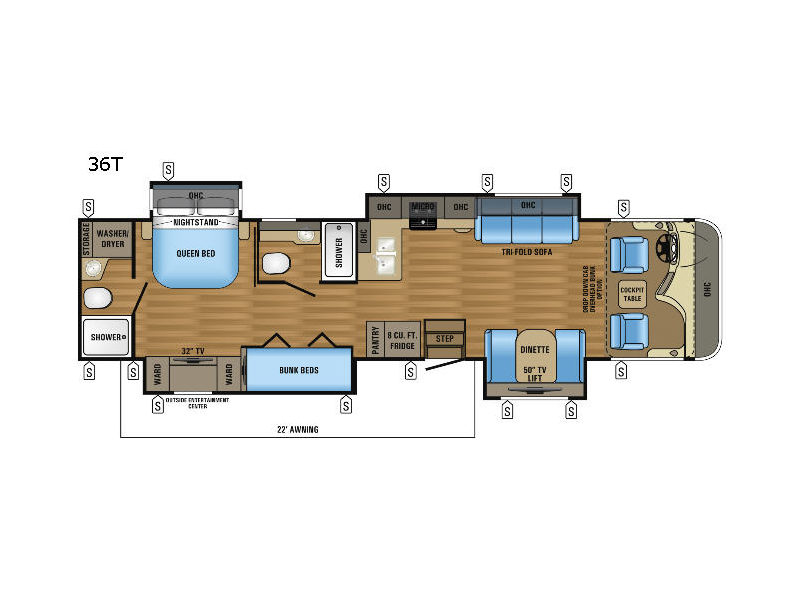

36T Floorplan
Specifications
Sleeps | 9 | Slides | 4 |
Ext Width | 8 ft 5 in | Ext Height | 12 ft 7 in |
Int Height | 7 ft | Hitch Weight | 5000 lbs |
GVWR | 24000 lbs | Grey Water Capacity | 80 gals |
Black Water Capacity | 101 gals | Tire Size | 22.5" |
Furnace BTU | 60000 btu | Fuel Type | Gas |
Engine | Triton 6.8L V-10 | Chassis | Ford F53 |
Horsepower | 320 hp | Fuel Capacity | 80 gals |
Wheelbase | 249 in | Number Of Bunks | 2 |
Available Beds | Queen | Torque | 460 ft-lb |
Refrigerator Type | Gas Electric with Raised Wood Panel Doors | Refrigerator Size | 8 cu ft |
Convection Cooking | Yes | Cooktop Burners | 3 |
Number of Awnings | 1 | LP Tank Capacity | 16.5 |
Water Heater Type | On Demand Tankless | TV Info | 50" Lift LR, 32" BR, 39" LED Exterior |
Awning Info | 22' Electric with LED Lights | Washer/Dryer Available | Yes |
Gross Combined Weight | 30000 lbs | Shower Type | Standard |
VIN | 1F66F5DY8J0A09555 |
Description
This Jayco Precept class A motorhome model 36T is the perfect coach for a growing family! With two full bathrooms, a set of bunk beds for the kids, and quad slide outs, there is enough room for your whole crew plus a guest or two!
In the front of model 36T enjoy the added space thanks to dual opposing slide outs. Along the door side there is a slide out booth dinette with a 50" lift TV to your right when you step inside. To the left of the entry door there is a refrigerator and a pantry for your canned goods. The road side slide opposite the door features a tri-fold sofa, overhead cabinets, and the rest of the kitchen appliances. Here you can whip up a meal or snack with a three burner range including an overhead convection microwave oven, and a double kitchen sink found along the interior wall. There are also plenty of cabinets for your daily dishes and other kitchen items.
In the cab area notice a handy cockpit table where you can play a card game or enjoy your morning cup of coffee. Above the cab there is an optional drop down overhead bunk which adds a bit more sleeping space if you wish.
Beyond the kitchen area you will find a side aisle bathroom along the road side which features a shower, toilet, and a vanity with sink.
Across from the bathroom there is a slide out with a set of bunk beds that the kids will surely love, and continuing into the rear master bedroom this slide also features two wardrobes and a 32" TV. Across from the wardrobes there is a slide out queen size bed with nightstands, and an overhead cabinet.
The master bathroom is located in the very rear of this model and it has everything you need to get ready for your day. There is a shower, toilet, and a sink with medicine cabinet overhead. For your convenience you can add an optional washer and dryer so you don't have to come home from vacation with a pile of dirty laundry.
Outside enjoy plenty of exterior storage as well as a 22' awning which provides shade from the sun, and an outside entertainment center featuring a 39" LED TV, plus so much more!
Features
- JRide Plus Package: Bilstein shock absorbers, heavy-duty front stabilizer bar, standard rear stabilizer bar, computer-balanced driveshaft and jounce bumpers
- Automatic hydraulic leveling jacks
- Pioneer in-dash, infotainment system with touch screen and Apple® CarPlay™ & Android Auto™ integration
- Backup and side-view cameras with monitor
- Frameless windows
- Electric patio awning with LED lights
- Slide out covers
- Exterior entertainment center with 39-inch LED TV mounted on swivel bracket & single-disc DVD/FM radio
- Onan Marquis Gold Genset 5,500-watt generator with auto gen start
- 1,000-watt inverter powers main TV, bedroom TV, exterior TV and entertainment center
- 50-amp electrical service
- 13,500-BTU A/C units (2)
- On-demand tankless water heater
- Solid-surface kitchen countertops with integrated stainless steel sink
- LED living room TV
- Day/night roller shades
- Driver/passenger swivel seats
- Ford F53 chassis
- 6.8L Triton V-10 320 HP gas engine with electronic fuel injection and 460 lb-ft torque
- 6-speed automatic TorqShift transmission with overdrive and tow-haul mode
- 130-amp alternator
- 56-pound, 16.5-gallon propane tank
- 12V chassis battery
- 22.5-inch Goodyear radial tires
- Front and rear disc, 4-wheel anti-lock brakes
- 5,000-pound rear hitch receiver with dual connector
- 7-pin plug
- 6-way power swivel driver and passenger seats
- Flush-mount LED marker lights
- Third brake light
- White high-gloss fiberglass walls
- Seamless, crowned fiberglass roof
- Entrance door with industry's largest travel view window
- One-piece fiberglass front and rear cap
- Bead-foam insulation (R-24 max roof, R-9 max floor, R-8 max walls)
- Electric-powered entrance step
- Lockable pass-through storage compartments with slam latches
- Slide out battery tray with (2) 12V house batteries
- 12V on-demand water pump
- Thetford Sani-Con Turbo Macerator system
- 120" panoramic windshield
- 84-inch interior ceiling height with padded vinyl ceiling
- High-intensity recessed LED ceiling lights
- Raised-panel cabinet doors
- Ball-bearing drawer guides
- 3-burner range with 9,000-BTU SuperBurner and piezo igniter
- Convection microwave oven
- 8-cubic-foot gas/electric refrigerator with raised-wood panel doors
- Water filtration system
- Dream Dinette™ mechanism easily raises and lowers dinette tabletop
- 2-point lap safety belts in all seating areas
- Soft-touch vinyl dash with wood grain accents
- 31,000-BTU auto-ignition ducted furnace (31UL)
- Two 30,000-BTU auto-ignition ducted furnaces (36T)
- 35,000-BTU auto-ignition ducted furnaces (35S, 35UP)
- Prep for satellite dish
- Cable TV hookup with RG-6 coax and video selector switch
- Digital antenna with signal booster
- Shower with surround, glass door and skylight
- Stainless steel lavatory sink
- Porcelain toilet with foot-flush
- Powered roof vent in bathroom with wall switch
- Queen-size bed with under-bed storage (31UL, 35UP, 36T)
- King-size bed (35S)
- Bedroom 32-inch LED TV
- Bunks – 300-pound rating (36T)
- Decorative kitchen backsplash
- Keyless entry
- Canadian Standards
- Customer Value Package
- 5.5KW Generator, 50 Amp Electrical Service, 1000 Watt Invertor,13,500 BTU Air Conditioner (2), Automatic Leveling Jacks,Back-up & Sideview Camera and Monitor,Driver/Passenger Cockpit Table, Electric Awning w/LED Lights,Exterior Entertainment Center w/LED TV & Single Disc DVD/FM Radio,Frameless Windows, J-Ride Plus Package, JBL Premium Sound System, LED TV in Living room, Roller Shades,Slideout Cover Awnings,Solid Surface Kitchen Countertops,On-Demand Tankless Water Heater,Touch Screen Information System
- Overhead bunk in cab area with 750 lb. capacity
- Flexsteel Theater Seating
- Bunk bed in slide out (35UP)
- (Std on 36T)
- 12 Cu Ft, 4-Door Refrigerator
- Washer/Dryer Combination (35S, 36T)
